🚗 ECUMaster Black + ESP32 Bluetooth Display & Logger

Real-time ECU data, alerts, and native ECUMaster logging

---

📦 Overview

This project connects an ECUMaster Black ECU to an ESP32 over Bluetooth, creating a compact standalone ECU display with:

• Live engine telemetry
• Driver alerts (visual + buzzer)
• Peak value tracking
• Automatic native ECUMaster-compatible logging

---

✨ Core Features

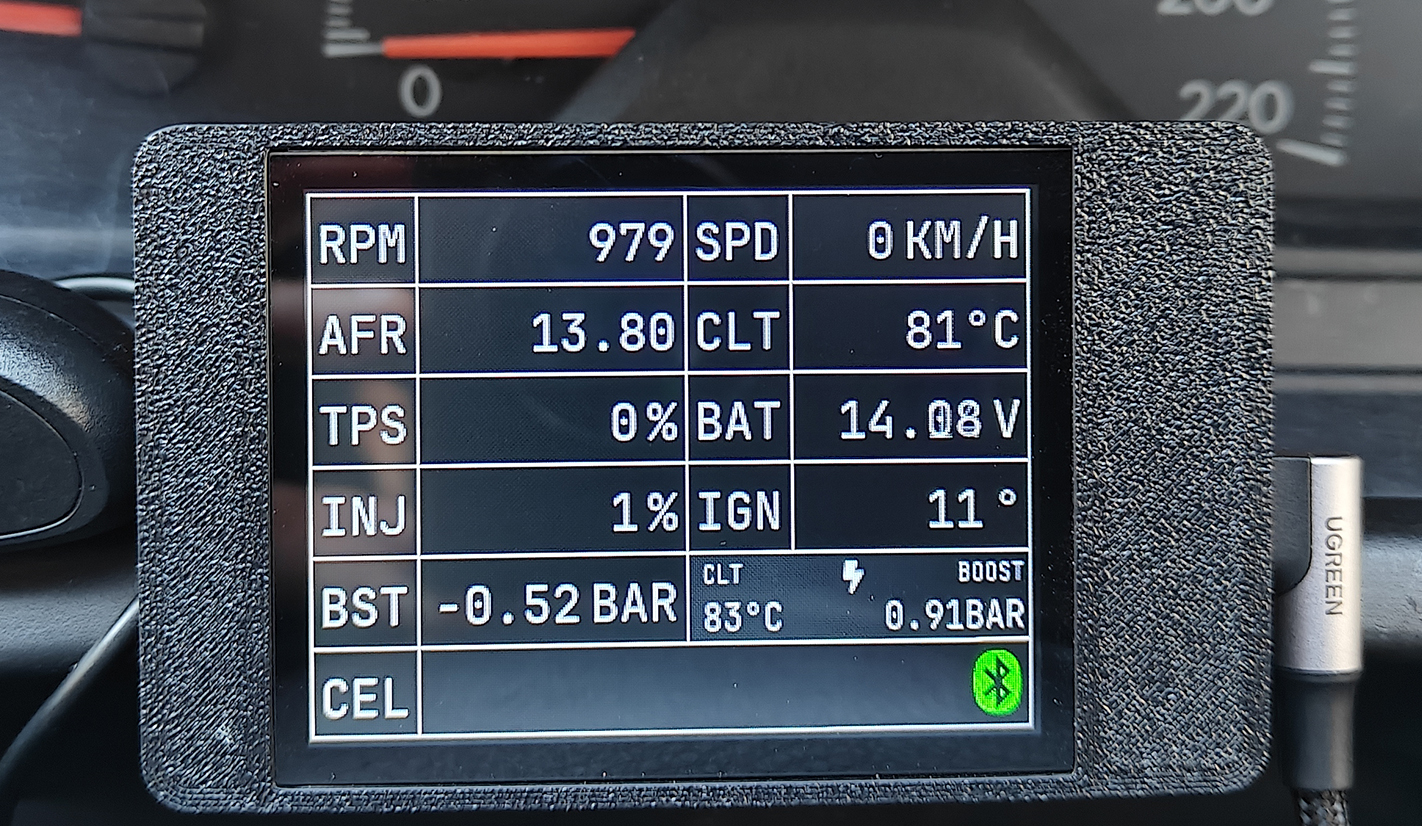

🖥️ Live ECU Display

• Real-time ECU data via Bluetooth
• LVGL-based TFT GUI (mono-space fonts)
• Fast refresh, low latency
• Automatic Bluetooth reconnect

🚨 Alerts & Threshold Monitoring

• Visual alerts on screen
• Optional buzzer alerts
• CEL warnings
• Configurable thresholds for:
  • Coolant temperature
  • RPM
  • AFR
  • Voltage
  • Boost / MAP
  • CEL status

Designed to keep the driver informed, not distracted.

---

📊 Peak Value Tracking

The display tracks and shows the highest values since power-on:

• Peak Boost Pressure
• Peak Coolant Temperature (CLT)

Useful for:

• Track sessions
• Safety checks
• Quick post-drive review without opening logs

---

📀 Native ECUMaster-Compatible Logging

The ESP32 records logs directly to a microSD card in native ECUMaster Black–compatible format.

• Fully readable by ECUMaster Black Software v2.x
• No CSV conversion
• No external tools
• Same workflow as ECU-side logs

How it works

• Logging starts automatically on engine start / ECU connection
• A new log file is created for each engine start
• Files open directly in ECUMaster software on Windows 10/11

Why this matters

• Laptop-free track days
• Long-term unattended logging
• Seamless analysis using official ECUMaster tools

---

💾 microSD Storage Management

Designed for long-term, hands-off use:

• Free space is continuously monitored
• When free space drops below 100 MB:
  • The oldest log file is automatically deleted
• Logging never stops due to a full card

---

🔒 Bluetooth Stability Improvements

• Incoming Bluetooth packets are validated before parsing
• Corrupted or partial frames are discarded safely
• Prevents freezes, crashes, or random reboots
• Handles reconnects cleanly during driving

Especially important in noisy RF environments or when reconnecting mid-drive.

---

✅ Tested On

• ESP32 JC2432W328
• Active 3.3V buzzer
• Arduino Core v2.0.17
• ECUMaster Black + Bluetooth Adapter
• ECUMaster Black Software v2.x (Windows 10 / 11)
• LVGL v8.3
• 8GB microSD card (FAT32)

⚠️ Note:
If SerialBT.setPin(pin) does not work, downgrade to ESP32 Arduino Core 2.0.17.
Newer cores removed this feature.

---

📥 Installation

1. Clone this repository
2. Install dependencies:
   • LVGL
   • TFT_eSPI
   • BluetoothSerial
   • SD
3. Configure lv_conf.h and TFT_eSPI if needed
4. Set ECU Bluetooth MAC or device name + PIN
5. Copy mono-space fonts:
   • ui_font_JBM_18.c
   • ui_font_JBM_15.c
   • ui_font_JBM_10.c
6. Insert a FAT32-formatted microSD card
7. Upload to ESP32
8. (Optional) Connect a 3.0–3.3V active buzzer to GPIO 22
9. Pair with ECUMaster Black Bluetooth adapter
10. Drive 🚗 — logging starts automatically

---

📦 Dependencies

• BluetoothSerial
• LVGL
• TFT_eSPI
• SPI
• SD

---

❓ FAQ

Q: Display not initializing?
A: Check TFT_eSPI and LVGL configuration.

Q: Logs not recording?
A: Verify microSD wiring, FAT32 format, and SPI pins.

Q: Blurry text?
A: Check LV_COLOR_16_SWAP in lv_conf.h.

Q: Recommended 3D printing material?
A: ABS or ASA (tested for high cabin temperatures).

Q: MicroSD card does not work?
A: Re-format the memory card to FAT32. If it still does not work, try a smaller capacity card (8GB)

---

🧰 Hardware Used

• ESP32 JC2432W328
  https://www.aliexpress.com/item/1005006729707613.html

• 3D Printed Case
  https://www.thingiverse.com/thing:6705691

• ECU
  ECUMaster Black + Bluetooth Adapter

• Active 3.3V Buzzer
  https://www.aliexpress.com/item/1005008682347898.html

• MicroSD card
  8GB Generic card

---

📺 Demo

YouTube

---

📝 Notes on Log Analysis (v5 Change)

• The custom online log analyzer used in v5 has been removed
• Logs are now written in native ECUMaster HEX format
• Use ECUMaster Black Software v2.x for:
  • Log viewing
  • Channel math
  • Overlays & comparisons

This simplifies the workflow and keeps analysis fully within the official ECUMaster ecosystem.

---

📜 License

Licensed under the GNU General Public License v3.0. See LICENSE.

---

❤️ Credits & Contributions

Made with ❤️ for petrolheads.

Forks, pull requests, and feature requests are welcome.
